You can either put Atmoph Window 2 and/or Atmoph Window Yo on your desk, or on the wall. Mounting on the wall looks and fits better for most rooms, have a look at steps below.
Noted, if you put Atmoph Window Yo on the desk, we recommend to use Charging Sill to ensure stable standing.
Before hanging the Atmoph Window 2 and/or Atmoph Window Yo on the wall
- Refer to the “Guide on Wall Mounting” included with the product.
- When the Atmoph Window 2 and/or Atmoph Window Yo is hung on a wall, depending on the material of the wall or wallpaper, heat from the product may cause discoloration of the wall surface or peel off of wallpaper on the part of the wall that is in contact with the back of the product.
- To check the detailed dimensions of Atmoph Window 2, refer to "Tell me the Tech Spec of Atmoph Window 2?".
- To check the detailed dimensions of Atmoph Window Yo, refer to "What is the size of Atmoph Window Yo?".
About the hooks to be used
In the following steps, it is required to use "Wall Mount Kit for Atmoph Window Yo".

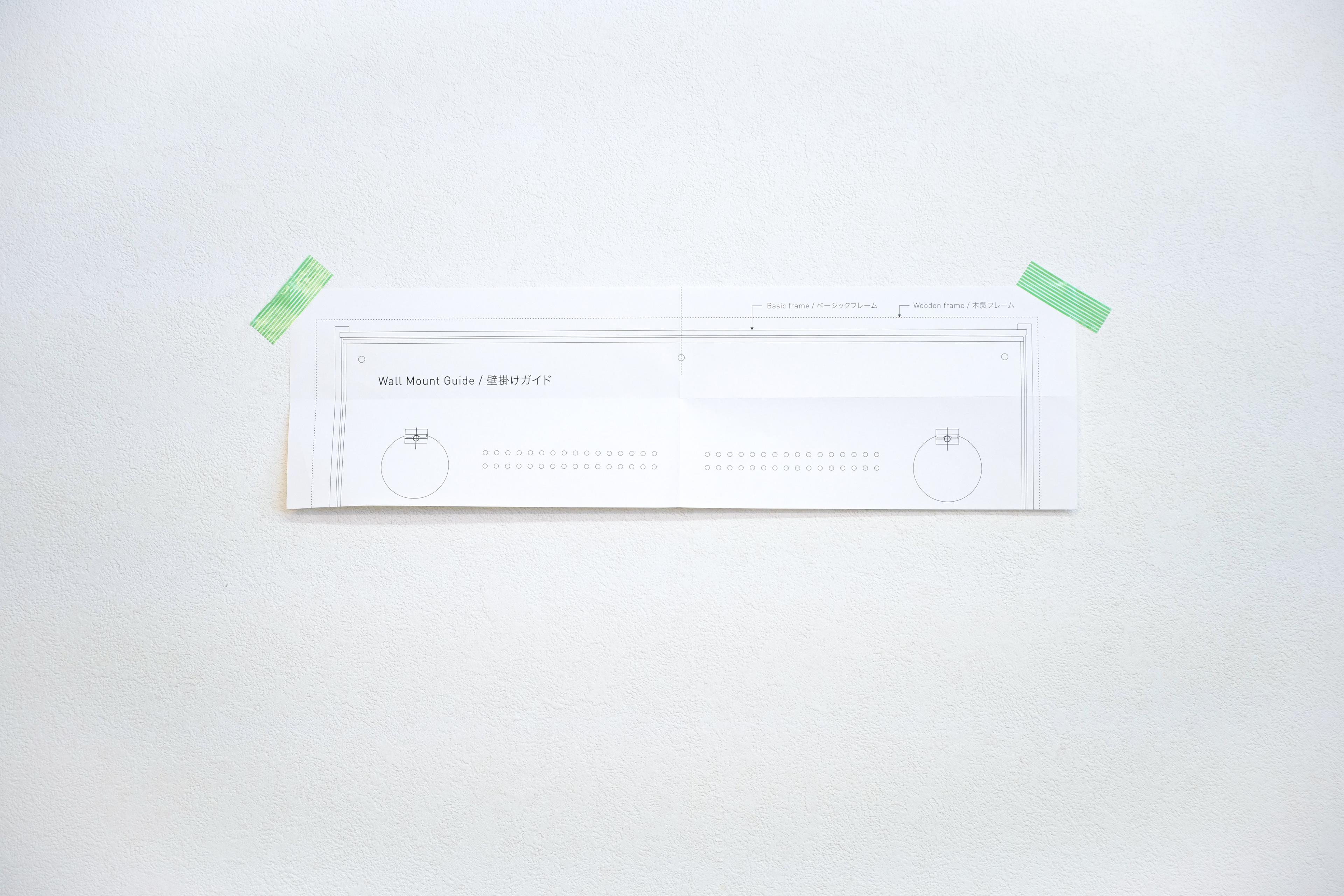

Step 1. Put the Wall Mount Guide on the wall, horizontally
Step back to check the level. You may want to use a level if you have.
Noted, the wall mount guide on this image is for Atmoph Window 2.

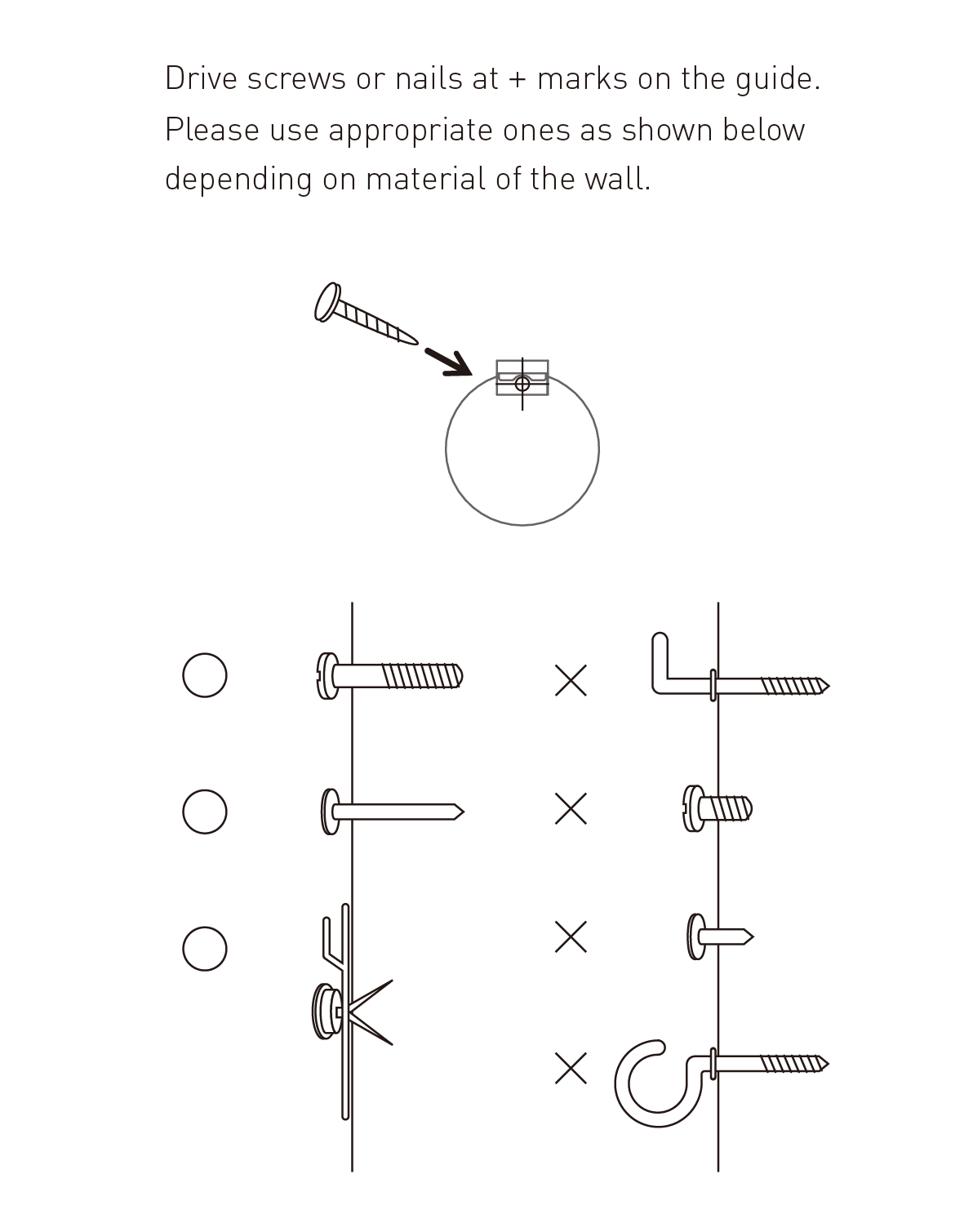

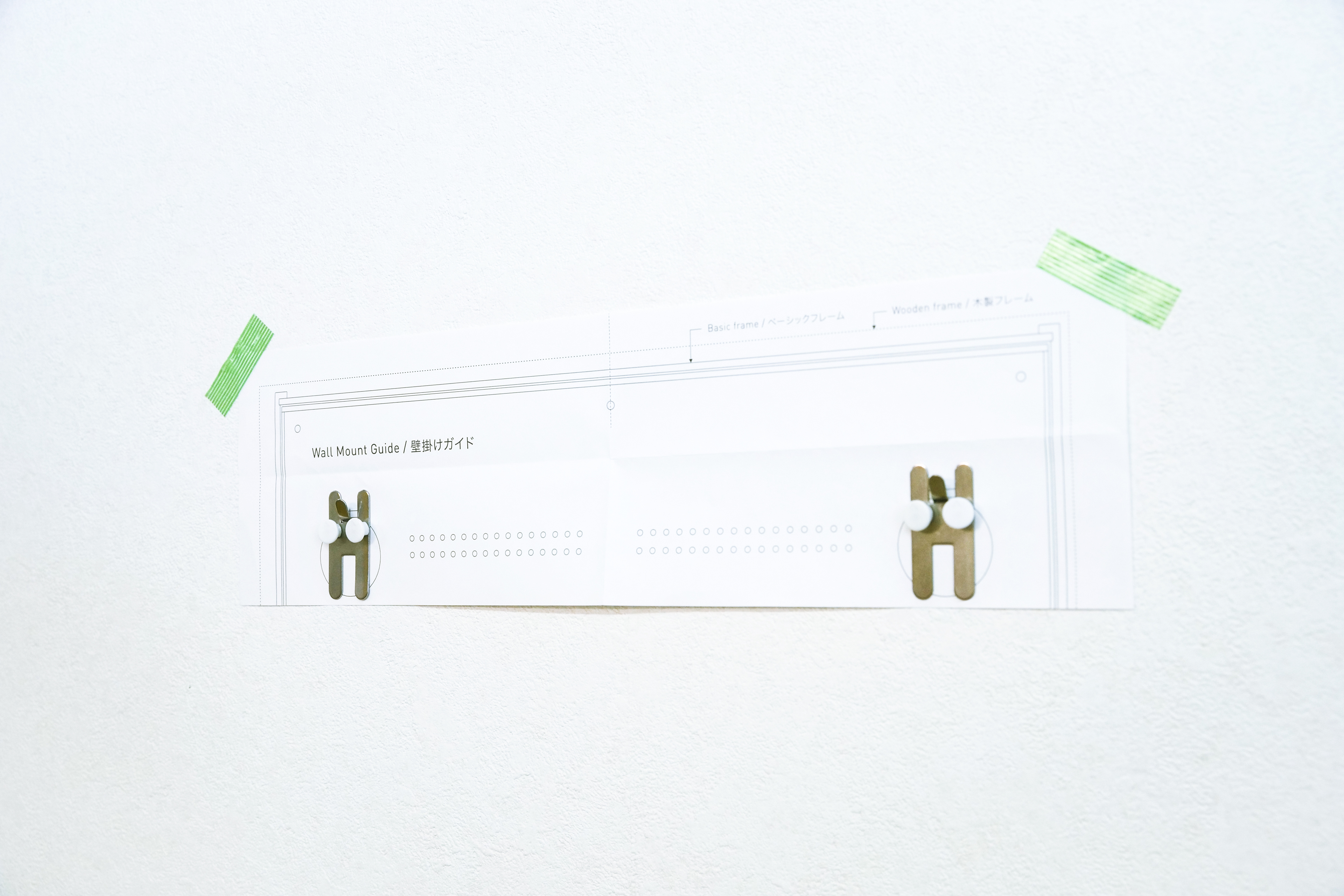

Step 2. Place nails/screws/hooks at the center of + mark
The hooks shown below are included in the wall-mount kit. You may want to use similar hooks or simply, nails and screws.

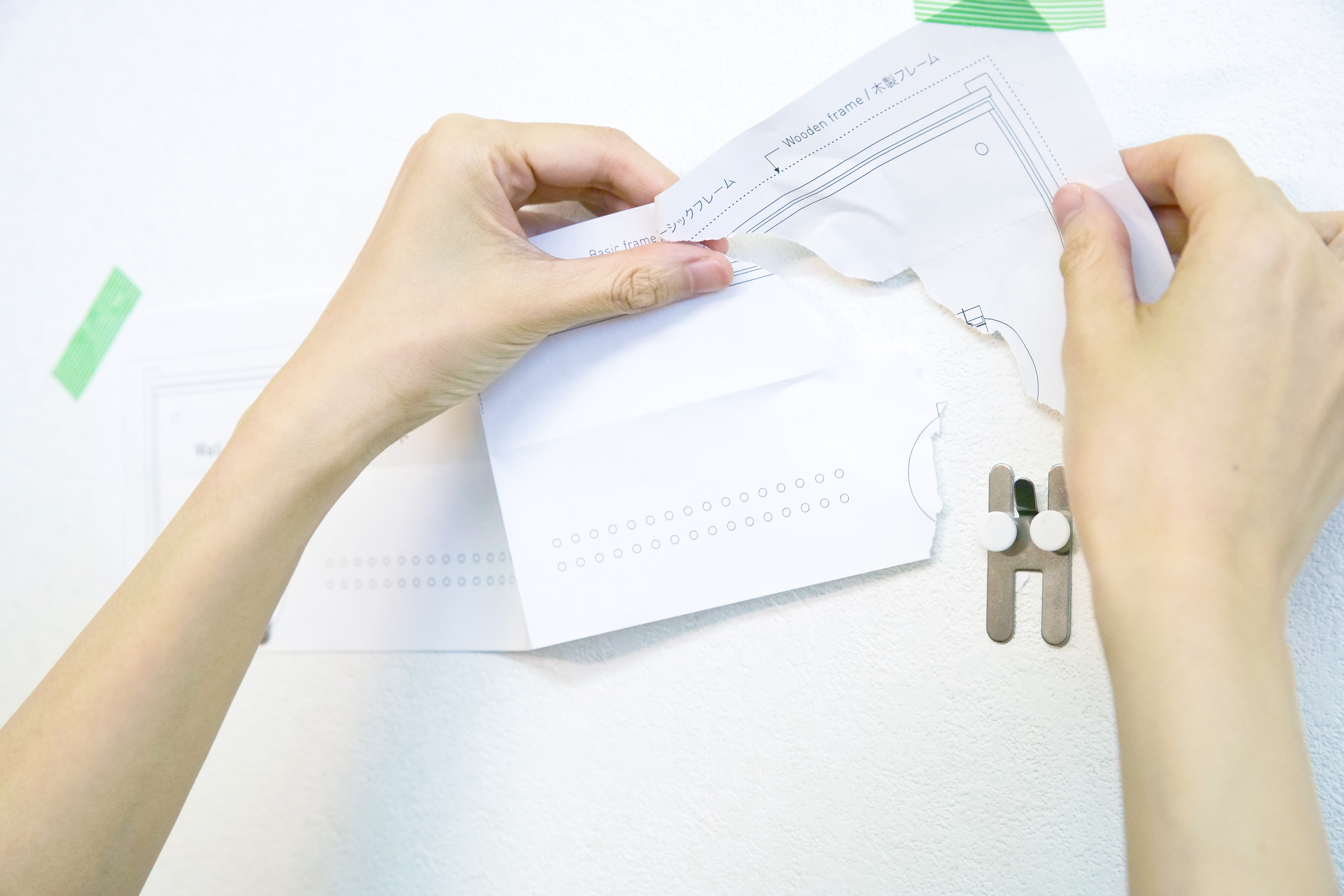

Step 3. Remove the guide

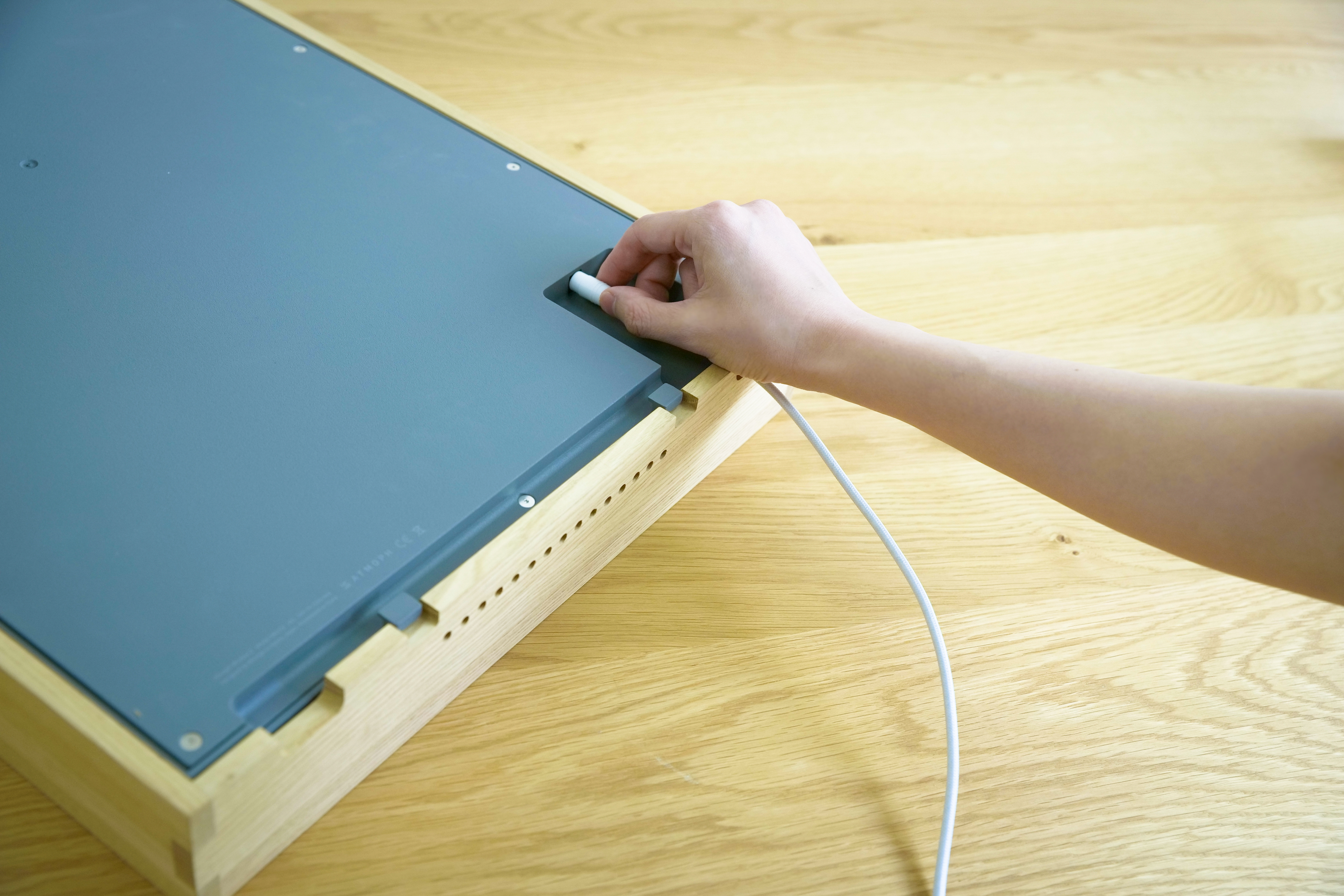

Step 4. Plug the power cable
Noted, the unit on this image is Atmoph Window 2.

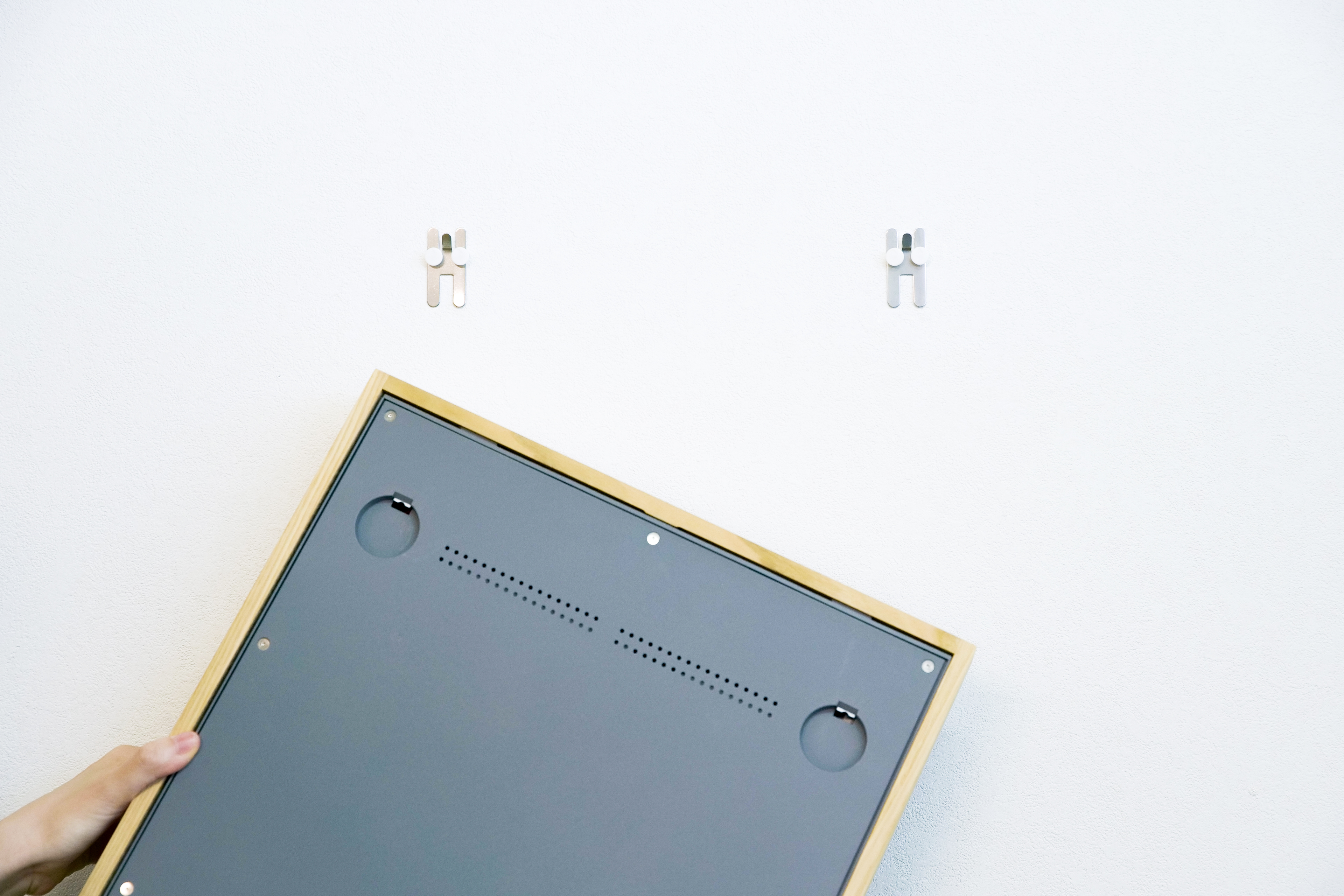

Step 5. Hang the metal place inside the mounting holes to the hooks/screws/nails

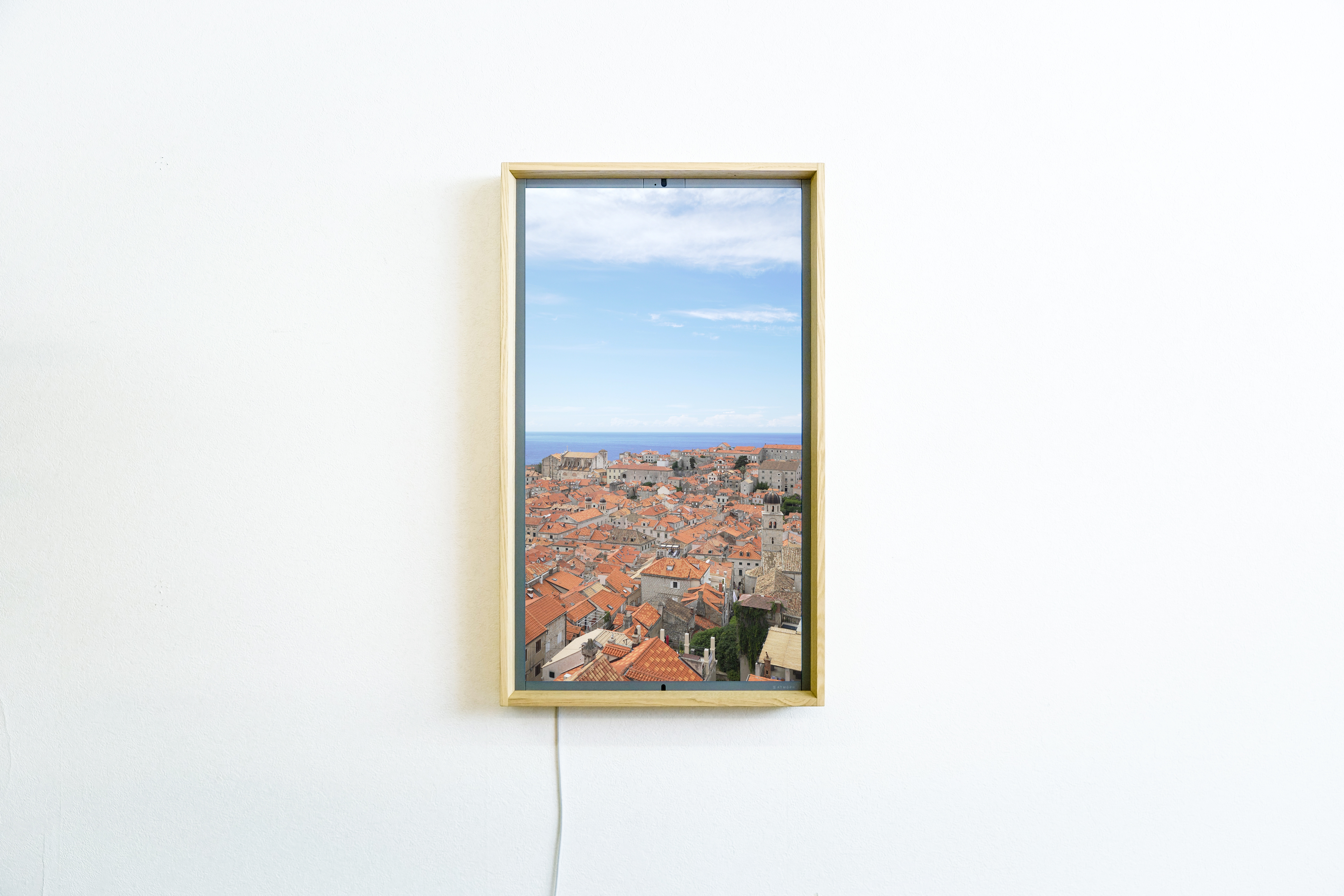

Step 6. Make sure it's firmly hanged and done!
